1. Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.With double slide table or rotary design, put-in, take-out products and molding finish at the same time, which is more safe and efficient for production , then reduce the cost of production.
2. High precision mold platen ( Parralelism/ flatness : 0.01/100mm), heavy-duty tie-bars, and low-pressure mold clamping work together to greatly extend
machine & mold life.

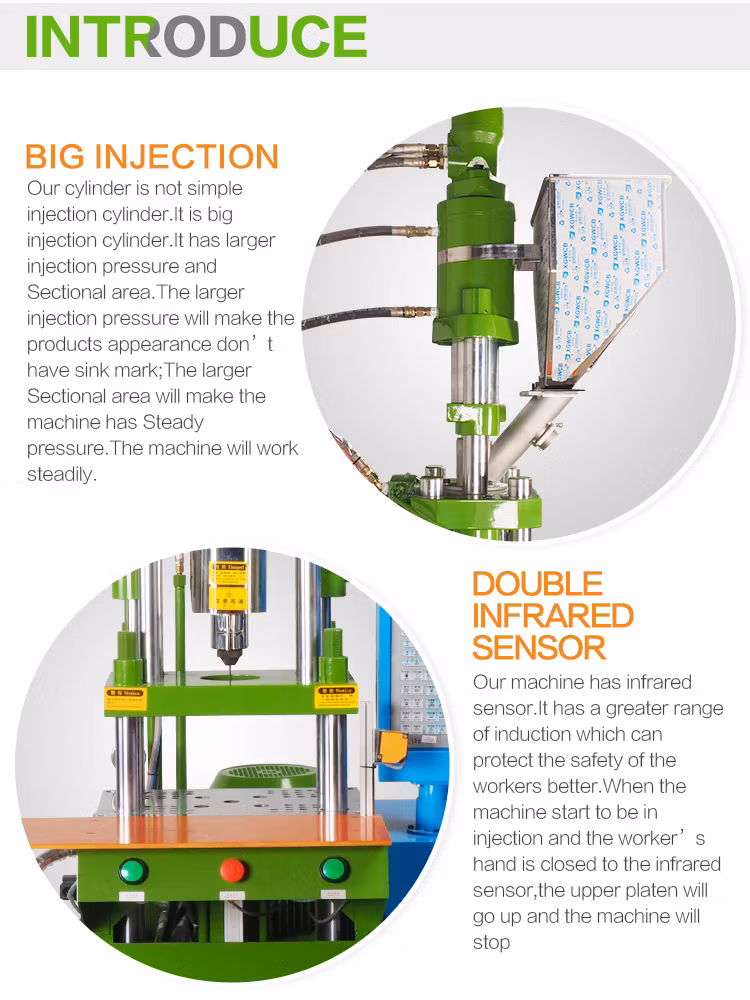

3. Nitride and NIP/ Nitroflon coated screws and barrels are longlasting, robust and provide superior acid/alkaline resistance.Heavyduty double cylinder injection unit is maintenance friendly and free of oil leaks.
4. All series adapted Variable pump +PQ valves enable energy savings of 30~50%.
5. Proportional hydraulic control system provides low noise, low energy consumption, and smooth machine movements with durable life.
|JY-350ST Technique specification|
|Theoretical Shot volume||cm3||76.93||88.3|
|Max. Shot Weight(P.S)||g/Oz||72.7/2.56||83.5/2.94|
|Distance Between Tie Bare||mm||370*205|
|Min Mold Height||mm||80/180|
|Max. Open Daylight||mm||260/360|
|Max. Hydraulic Pressure||Kg/cm2||140|
|Pump Motor Power||Kw||4|
|Barrel Heating Power||Kw||2.8|
|Machine Dimensions (L*W*H)||m||1.48*1.07*2.15|
|Key Parts List|
|Part Name||Brand||Original of Country||Features|
|Computer||Star Denshi||Japan||High Precise Control,|
TFT Color display
|Servo Motor||YASKAWA||Japan||Energy Saving|
|Yuken||Japan||High sensitive response|
|hydraulic valve||HSUTIEN||Taiwan||Longer span life|
|Material Cylinder||Tan Star||Taiwan||Antia brasive|
Longer span life
|hydraulic Motor||White||USA||Low noise|
|Servo Pump||Eckerle||Germany||Low noise|
|Electrical Ruler||Gefran||Italy||High Precise Control|
|Seal||HALLITE||UK||Longer span life|
|Proportional rejection valve||Yuken||Japan||High Precise Control|
Longer span life
|Oil Cylinder||Lianhuei||Taiwan||Antia brasive|
Vertical injection machine have the advantage of low-noise, low-energy-consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, connectors, cables,auto parts, Plug ,etc.
Q1: Are you a trading company or a manufacturer?
A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements
Q2: What's your warranty for the machine?
A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.
Q3: What's your Delivery Time?
A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.
Q4: Where is your factory? How can visit you?
A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station.
Q5: Why choose Jieyang Machinery Co., Ltd.?
A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.
Welcome to inquiry us !
