Win Win Tech Check Fixture facility is located in Shenzhen, close to the airport. It have been specialized in designing and making check fixtures for automotive parts since July, 2006. And we have accumulated rich experience of designing and making check fixtures for automotive parts. We are ISO9001 certified enterprise.
We have 5 big CNC machines, lathe, NC milling machine for check fixture manufacturing. And with 4 CMM in our QC department to inspect the fixture dimensions. The inspection accuracy is 0.002MM. And our designing team is using UG software to design check fixture.
Competitive price, High quality and Punctual delivery have earned many faithful customers from overseas and domestic.
1. Automotive checking fixture design
2. Automotive checking fixture manufacture(for plastic and stamping parts both)
3. Impact checking fixture
4. CMM checking fixture
5. Measurement service for CMM report
6. CMM holding fixture
7. Welding fixture
8. Force testing fixture
Comprehensive automotive checking fixture services:
Automotive checking fixture, Automotive plastic part gauge, Automotive stamping parts checking fixture, instrument panel gauge, door panel gauge, Front/Back Bumper gauge, Automotive Lamp checking fixture, interior part checking fixture, exterior part fixture, Welding checking fixture, pneumatical checking fixture and so on.
The checking fixtures we make are with the following advantages:
1. Very beautiful appearance Automotive checking fixture
2. Very precise accuracy
2.1 Datum's hole's precision: +/-0.05MM
2.2 Locating Datum's precision: +/- 0.1MM
2.3 Profile precision: +/-0.15MM
3 . Low cost Price level, very competitive price: 2000-8000USD
4 . Short delivery 15-35Days
5 . Quality guarantee
6. Component drawing, Assembly drawing, 3D gauge drawing, Operation Manual, CMM Calibration report, Shipping Confirmation Pictures checking report by third party will be delivered along with fixture .
7. Third party certification available
8. Package: Wooden Carton/ Pallet/ Crate
9. Very fast/ efficient air shipping, cost saving ocean shipping
Win Win Tech has 12 designers with rich experience, we use Auto CAD for the 2D design, and UG, Pro/E for the 3D data design.
During the design process, we always focus on the below 3 factors:
A: Basically design according to the customer 2D, 3D, making sure each required point can be checked on the gauge.
B: Optimize the design for easy machining and use, for better production cost and delivery time.
C: Make sure the design is flexible in case the customer will have modification need during the building process or after the fixtures done.
After the design finished and approved by the customer, we will also make the work instruction for customer checking. Then even at the design stage the clients know how to use the gauge, and know everything about the gauges.

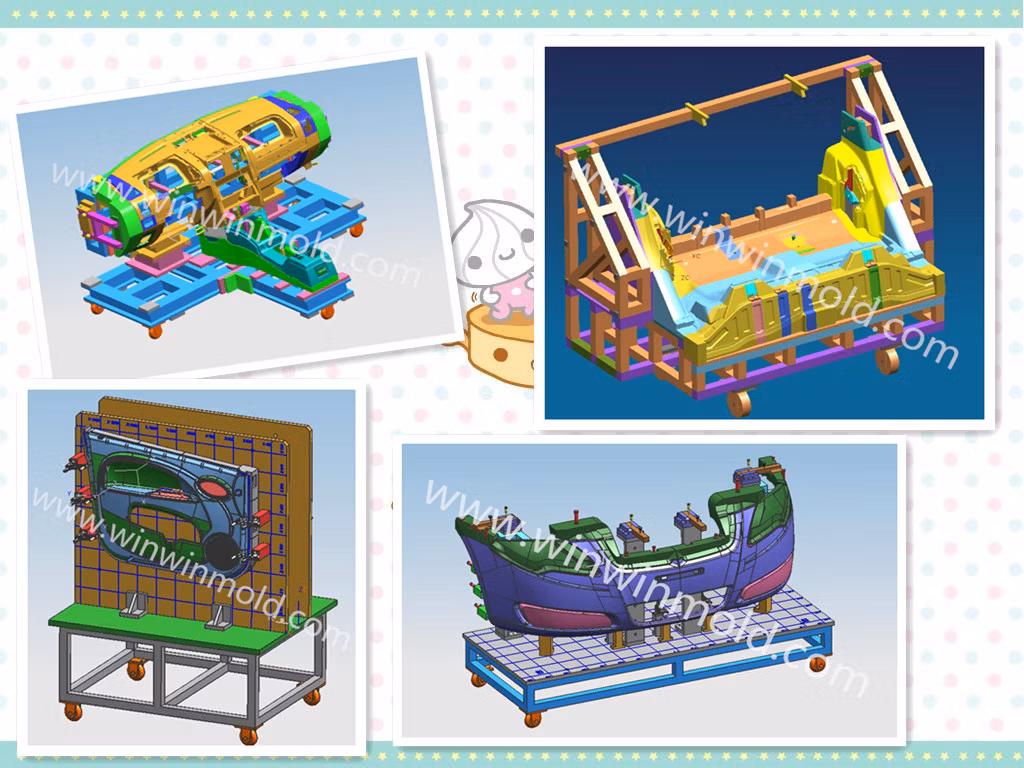

3D Design Case Study Show
